Concrete Foundations | Types, Benefits, and Best Uses

Concrete foundations are the bedrock of any structure, providing the essential support that ensures buildings stand tall and resilient.

In the United States, the choice of foundation type is influenced by factors such as soil composition, climate, and the specific requirements of the structure.



This comprehensive guide delves into the various types of concrete foundations, their benefits, and their optimal applications, while also highlighting recent industry trends.

At the heart of every stable structure lies a well-designed foundation. Foundations distribute the building's load evenly across the ground, preventing unequal settling that can lead to structural issues.



They act as a barrier against ground moisture, insulate against temperature fluctuations, and anchor the building against natural forces such as wind and seismic activities. A meticulously planned and constructed foundation is paramount to the longevity and safety of any edifice.

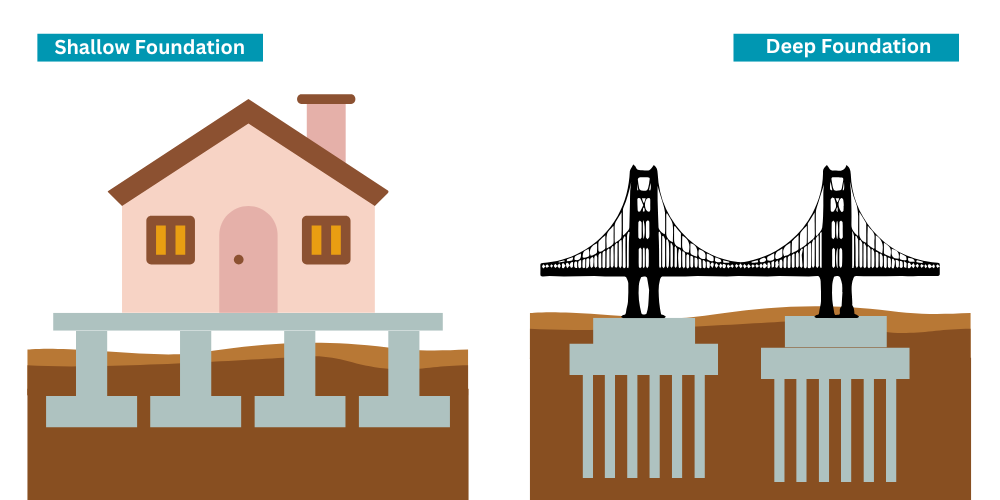

Types of Foundations: Shallow vs. Deep

Foundations are primarily categorized into two types: shallow and deep.

• Shallow Foundations: These are positioned close to the ground surface and are typically used when the surface soils have sufficient bearing capacity. They are cost-effective and easier to construct, making them ideal for lighter structures. Common types include slab-on-grade and mat (raft) foundations.


• Deep Foundations: Employed when surface soils are inadequate to support the load, deep foundations transfer the building's weight to deeper, more stable soil layers or rock formations. This category includes pile foundations and drilled shafts, which are essential for large buildings or structures on weak or expansive soils.


Concrete Foundation Application

The selection of a foundation type varies based on the building's purpose and the conditions of the construction site:

• Residential Buildings: Homes often utilize slab-on-grade foundations, especially in warmer climates where ground freezing is minimal. In areas prone to frost, frost-protected shallow foundations are preferred to prevent heaving.


• Commercial Buildings: These structures, which may house offices or retail spaces, often require foundations that can support heavier loads and accommodate basements or underground parking. T-shaped foundations are commonly used in such scenarios.


• Industrial Buildings: Given the substantial weights and dynamic loads from machinery, industrial facilities often rely on deep foundations like pile systems to ensure stability and longevity.

Exploring Different Types of Concrete Foundations

1. Slab-on-Grade Foundations

This foundation consists of a single layer of concrete poured directly at ground level. The edges are thickened to provide extra support where needed. Slab-on-grade is popular in regions with mild climates and is known for its cost-effectiveness and quick installation.



However, it offers limited access to utilities once the concrete is set, which can pose challenges for future modifications.

2. T-Shaped Foundations

Ideal for colder climates, T-shaped foundations are designed to combat the effects of frost. This method involves placing a footing below the frost line, upon which walls are constructed, and finally, a slab is poured between the walls. This design ensures that the foundation remains stable despite freeze-thaw cycles.

3. Frost-Protected Shallow Foundations

Specifically engineered for heated structures in cold regions, this type of foundation incorporates insulation to shield the soil beneath from freezing temperatures. By doing so, it allows for shallower footings, reducing excavation costs and construction time. This method is both energy-efficient and cost-effective.

4. Pier and Beam Foundations

Also known as crawl space foundations, this system elevates the building above the ground using concrete piers and beams. This elevation provides a crawl space that offers easy access to plumbing and electrical systems. It's particularly advantageous in areas prone to flooding or where soil conditions are challenging.

5. Mat (Raft) Foundations

A mat foundation involves a thick, continuous slab that extends over a large area, often covering the entire footprint of the building. This type is suitable for soils with low bearing capacity, as it distributes the building's load evenly, minimizing the risk of differential settlement. Mat foundations are commonly used for large commercial or industrial structures.

The construction industry is continually evolving, with a significant emphasis on sustainability and innovation:

•
• Sustainable Materials: There's a growing shift towards using eco-friendly materials. For instance, the adoption of Portland Limestone Cement (Type 1L) has been successful in reducing CO₂ emissions by approximately 10% in foundation work. This change not only benefits the environment but also meets the increasing demand for greener construction practices. citeturn0search1


• Advanced Technologies: The integration of 3D printing in construction has made significant strides. In Georgetown, Texas, the world's largest 3D-printed neighborhood is nearing completion, showcasing the potential for faster and more cost-effective housing solutions. This method reduces material waste and allows for precise control over the construction process. citeturn0news22


• Carbon-Negative Building Materials: Innovations are underway to produce carbon-negative concrete. Companies are exploring methods to capture atmospheric CO₂ and incorporate it into concrete mixtures, significantly reducing the carbon footprint of new constructions. This approach not only addresses environmental concerns but also enhances the durability and strength of the foundations. citeturn0news18
